    TH384 Kabelstecker weiblich 3 polig

    Housing: Cable plug connector, female contacts·Steckverbindertyp: Buchse·Polzahl: 3
    Image similar
    TH384 cable connector for crimp contacts, cable socket housing with pin contacts
    Product number:
    THF.384.B1A
    Stock:
    Out of stock

    Properties

    Housing:Cable plug connector, female contacts
    Steckverbindertyp:Buchse
    Polzahl:3
    Serie:TH384
    Housing shape:Round
    Montageart:Kabelmontage
    Housing material:Black plastic
    Kontaktmaterial:Brass
    Connection type:Crimp contacts
    Schutzart:IP66, IP68
    Spannung [V]:500
    MaxStrom [A]:10
    Kabeldurchmesser [mm] min.:7
    Kabeldurchmesser [mm] max.:12
    Zulassung:CE

    Other variants (6)

    Name Item no. Housing Polzahl Steckverbindertyp Stock

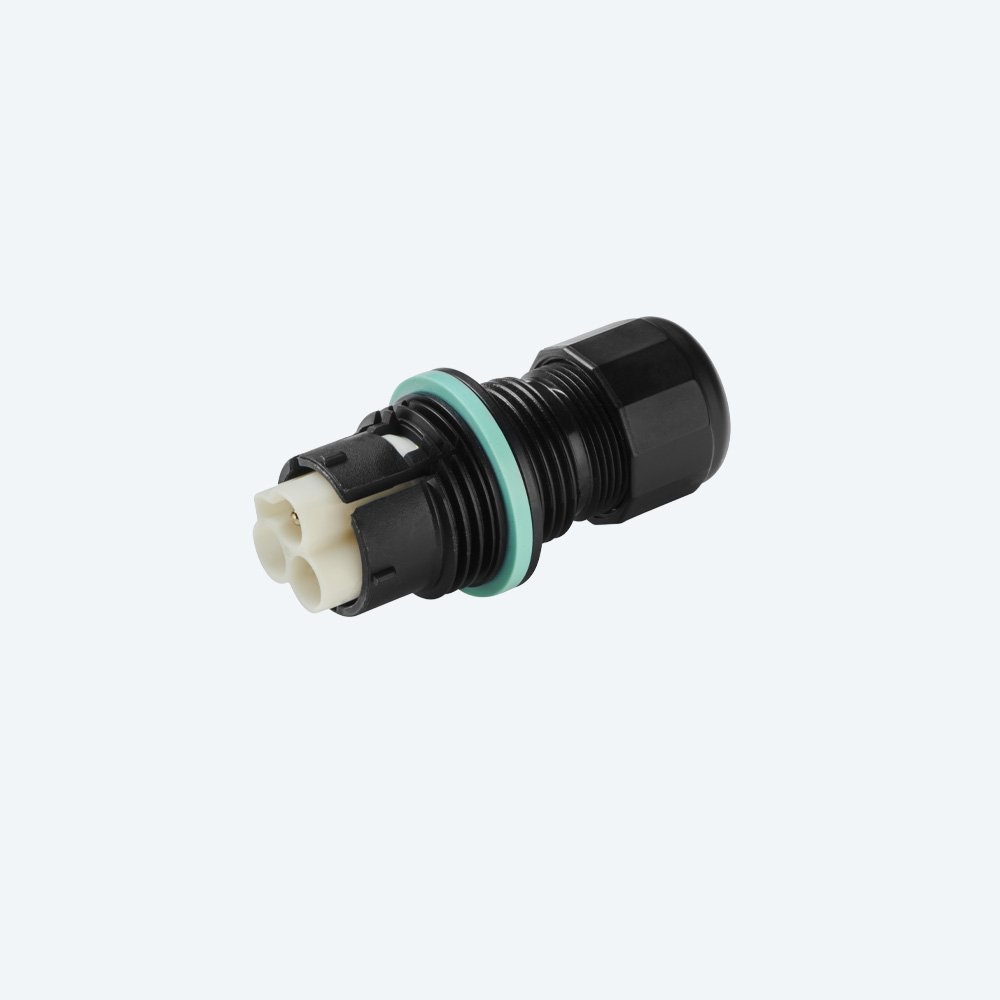

    TH384 Kabelkupplung männlich 3 polig TH384 Kabelkupplung männlich 3 polig
    Cable socket connector, male contacts
    Stecker
    3
    		 THF.384.A1A Cable socket connector, male contacts 3 Stecker 0
    TH384 Kabelkupplung männlich 2 polig TH384 Kabelkupplung männlich 2 polig
    Cable socket connector, male contacts
    Stecker
    2
    		 THF.384.A2A Cable socket connector, male contacts 2 Stecker 0
    		TH384 Kabelkupplung männlich 4 polig
    Cable socket connector, male contacts
    Stecker
    4
    		 THF.384.A4A Cable socket connector, male contacts 4 Stecker 0
    TH384 Kabelstecker weiblich 3 polig TH384 Kabelstecker weiblich 3 polig
    Cable plug connector, female contacts
    Buchse
    3
    		 THF.384.B1A Cable plug connector, female contacts 3 Buchse 0
    TH384 Kabelstecker weiblich 2 polig TH384 Kabelstecker weiblich 2 polig
    Cable plug connector, female contacts
    Buchse
    2
    		 THF.384.B2A Cable plug connector, female contacts 2 Buchse 0
    		TH384 Kabelstecker weiblich 4 polig
    Cable plug connector, female contacts
    Buchse
    4
    		 THF.384.B4A Cable plug connector, female contacts 4 Buchse 0

    Description

    Product Description

    The TH384 is a rugged, waterproof circular connector designed for reliable cable-to-cable connections in demanding industrial and outdoor applications. Available as a male connector and a female connector, it is designed for use by electrical installers, the mechanical engineering sector, and the lighting industry. It is ideal for installations that require a high level of protection against dust, water jets, and continuous submersion.

    Technical Specifications

    • Rated current: max. 10 A

    • Rated voltage: max. 500 V

    • Protection rating: IP66 / IP68

    • Number of poles: 2, 3, or 4

    • Connection type: Crimp connection

    • Housing: Male connector and female connector

    Advantages

    • High degree of protection: With IP66 and IP68 protection ratings, the connector is protected against powerful water jets and continuous submersion, ensuring reliable operation in harsh environments.

    • Secure crimp connection: The crimp connection technology ensures a mechanically strong and electrically stable connection with consistently low contact resistance, ideal for applications subject to vibration.

    • Suitable for power applications: The design for up to 10 A at 500 V allows for use in power transmission as well as signal applications.

    • Flexible configuration: Available in 2-, 3-, or 4-pole versions, it can be adapted to various circuit requirements, including the connection of protective conductors. Please contact our sales team for additional options.
